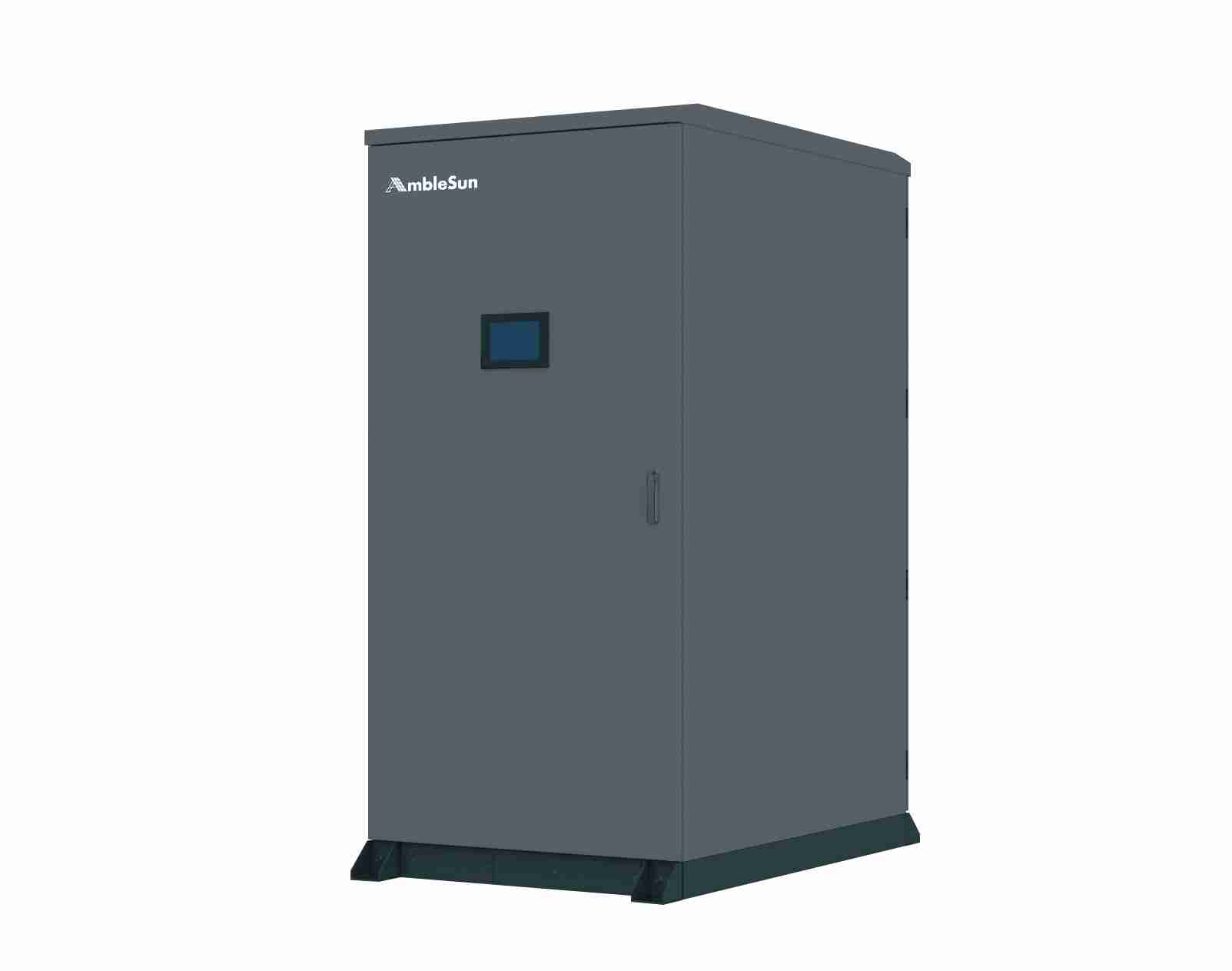

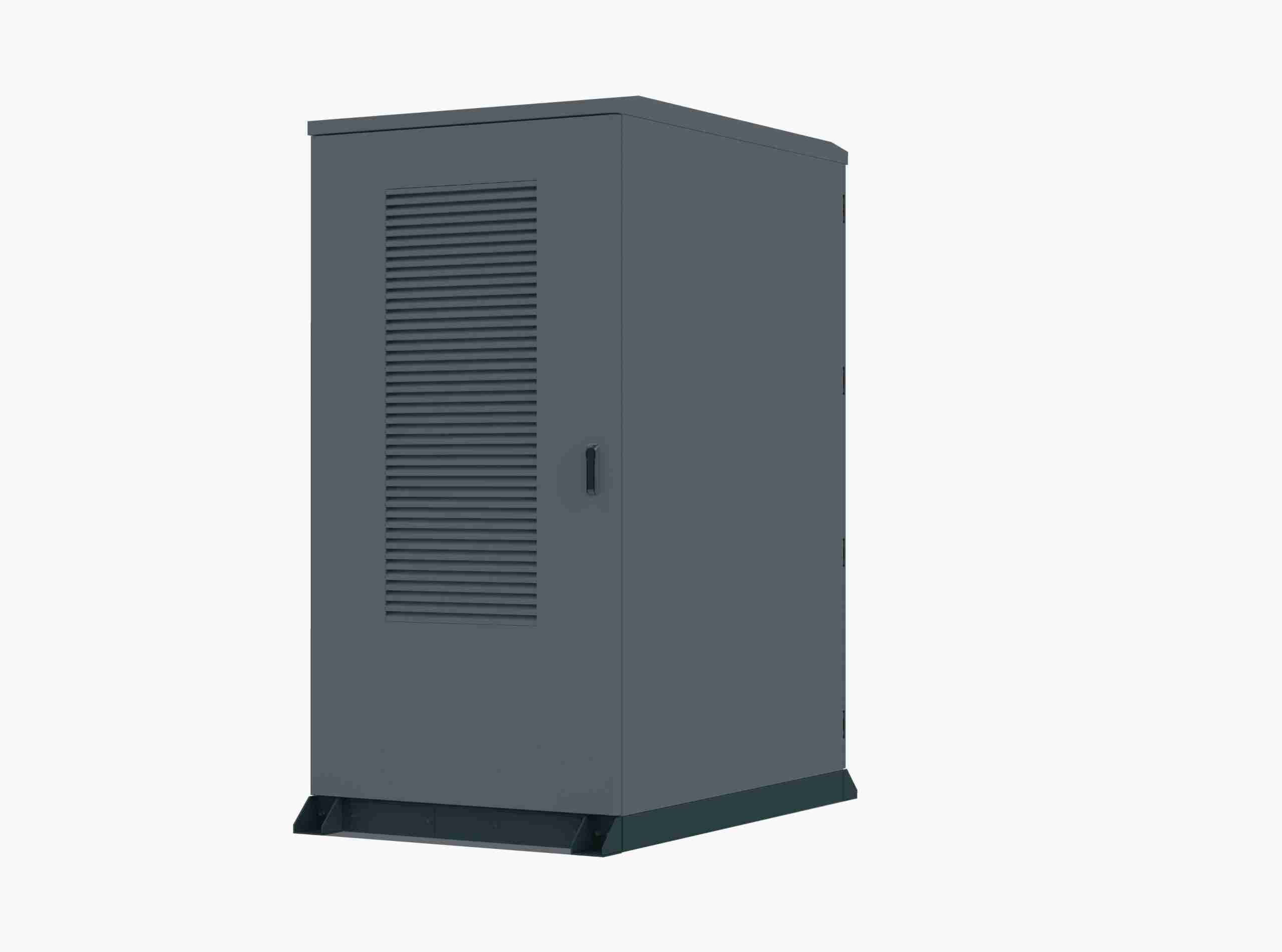

High Capacity 100kW Battery Energy Storage System

Description

HIGH CAPACITY 100KW BATTERY ENERGY STORAGE SYSTEM

The High Capacity 100kW Battery Energy Storage System represents a significant advancement in energy storage technology, offering robust, scalable, and efficient energy solutions for various applications. As the demand for sustainable and reliable power increases, this 100kW system stands out as a critical component in modern energy infrastructure, providing stability, efficiency, and long-term savings. This description will explore the key features, benefits, technical specifications, applications, and cost considerations of the 100kW Battery Energy Storage System.

Battery Parameters
Number of battery packs	7
Rated voltage	384V
Voltage range	300-438V
Rated energy	108kWh
Max. Continuous charging and discharging current	100A
Communication	RS485/CAN
Cycle life	8000 times
PV Parameters
Max.PV input power	50kW
Rated input voltage	600VDC
Max.input voltage	1000VDC
MPPT voltage range	200~850VDC
PV input current	36+36+36(A)
AC Side Parameters
AC rated input/output power	50kVA
AC Max. input/output power	55kVA
AC rated input/output current	83.3A
AC Max. input/output power	100A
Voltage	3L/N/PE; 230/400V
Frequency	50/60Hz
THDi	≤3%
Power Factor	0.8 leading to 0.8 lagging
PV String Input Data
Max. DC Input Power	100kW
Max. PV Voltage	1000V
Rated DC input Voltage	620V
DCinput Voltage Range	150-1000V
MPPT Voltage Range (V)	150-850V
Full MPPT Range(V)	500-850V
Start–up Voltage (V)	160V
Max.DC input Current (A)	40AX4
Max.Short Current(A)	48AX4
No of MPPT Tracker / Strings	4/8



Key Features

High Capacity and Efficiency

• 100kW Battery Energy Storage System: Designed to store and manage large amounts of energy, this system can support various applications, from industrial to commercial and grid-support functions.
• High Voltage Battery Pack: The system incorporates high voltage battery packs, which enable efficient energy storage and discharge, optimizing performance and reliability.
• Efficiency: With advanced battery management systems (BMS) and optimized power electronics, the system achieves high efficiency in both charging and discharging cycles.

Advanced Battery Technology

• 100KW UPS Lithium Battery: Utilizes high-capacity lithium-ion batteries, known for their long cycle life, high energy density, and reliability.
• High Voltage Battery Design: Features a sophisticated design that includes multiple high voltage battery packs, ensuring stable and efficient energy storage.

Robust and Scalable

• Scalability: The system is designed to be scalable, allowing for easy expansion to meet growing energy needs.
• Modular Design: Features a modular design that facilitates maintenance, upgrades, and customization according to specific requirements.

Safety and Reliability

• Battery Management System (BMS): Equipped with an advanced BMS that monitors and manages the performance of each battery cell, ensuring safety and reliability.
• Safety Mechanisms: Includes multiple safety mechanisms such as overcharge protection, thermal management, and short-circuit protection.

Versatile Applications

• High Voltage Battery Storage: Suitable for various applications including renewable energy integration, grid stabilization, and backup power.
• Flexible Deployment: Can be deployed in various settings such as industrial facilities, commercial buildings, and utility-scale projects.



Benefits

Enhanced Energy Security

• Reliable Power Supply: Ensures a stable and reliable power supply, reducing dependence on the grid and enhancing energy security.
• Backup Power: Provides essential backup power during outages, ensuring continuous operations for critical systems.

Cost Savings

• Reduced Energy Costs: By storing energy during off-peak hours and discharging during peak hours, the system helps in reducing energy costs.
• Low Maintenance: The high reliability and long lifespan of lithium-ion batteries reduce maintenance costs and operational expenses.

Environmental Impact

• Sustainable Energy Storage: Supports the integration of renewable energy sources such as solar and wind, contributing to a reduction in greenhouse gas emissions.
• Reduced Carbon Footprint: Promotes the use of clean energy, helping in the transition to a more sustainable energy future.

Grid Stabilization

• Frequency Regulation: Helps in stabilizing the grid by providing frequency regulation services.
• Load Balancing: Assists in balancing the load on the grid, enhancing overall grid efficiency and reliability.

Technical Specifications

• Power Output: 100kW
• Energy Capacity: Variable based on configuration, typically ranging from several hundred kWh to over 1 MWh.
• Battery Type: High-capacity lithium-ion batteries
• Voltage: High voltage battery pack design, typically 400V to 1000V
• Efficiency: Up to 95% round-trip efficiency
• Operating Temperature: -20°C to 50°C
• Dimensions: Varies based on configuration and customization
• Weight: Dependent on the battery capacity and system design
• Certifications: Compliance with international safety and performance standards such as UL, IEC, and CE

Applications

Industrial and Commercial BATTERY Use

• Manufacturing Facilities: Provides reliable power for manufacturing processes, reducing downtime and operational costs.
• Data Centers: Ensures uninterrupted power supply for critical data center operations, enhancing reliability and performance.
• Commercial Buildings: Reduces energy costs and improves energy efficiency in commercial buildings through peak shaving and load shifting.

Renewable Energy Integration

• Solar Power Systems: Integrates seamlessly with solar power systems, storing excess solar energy for use during non-sunny periods.
• Wind Power Systems: Stores energy generated from wind turbines, ensuring a consistent and reliable power supply.

Grid Support

• Frequency Regulation: Provides frequency regulation services to the grid, enhancing stability and reliability.
• Demand Response: Participates in demand response programs, helping to balance supply and demand on the grid.

Residential Use

• Home Energy Storage: Suitable for large residential properties or small communities, providing reliable backup power and reducing energy costs.
• Off-Grid Solutions: Ideal for off-grid applications, ensuring a reliable power supply in remote areas.



Cost Considerations

Initial Investment

• High Initial Cost: The initial investment for a 100kW Battery Energy Storage System can be substantial, reflecting the high capacity and advanced technology.
• Quality and Reliability: Higher initial costs are often justified by the quality, reliability, and long-term performance of the system.

Long-Term Savings

• Energy Savings: Significant savings on energy costs through peak shaving, load shifting, and participation in demand response programs.
• Maintenance Costs: Lower maintenance costs due to the reliability and long lifespan of lithium-ion batteries.
• Return on Investment (ROI): High ROI over the lifespan of the system, driven by energy savings and reduced operational costs.





The High Capacity 100kW Battery Energy Storage System is a versatile and reliable solution for various energy storage needs. Its high capacity, advanced lithium-ion technology, and robust design make it suitable for a wide range of applications, from industrial and commercial use to renewable energy integration and grid support. With its scalability, efficiency, and long-term cost savings, this system is an excellent investment for those looking to enhance energy security, reduce costs, and promote sustainability.

Whether you are a business looking to reduce operational costs, a utility aiming to stabilize the grid, or a homeowner seeking reliable backup power, the 100kW Battery Energy Storage System offers a comprehensive solution. By integrating this system into your energy infrastructure, you can enjoy the benefits of reliable, efficient, and sustainable energy storage.
