Containerized Storage with LiFePO4 Battery

Description

CONTAINERIZED STORAGE WITH LIFEPO4 BATTERY

Discover Sustainable Power Solutions with Containerized Storage

Are you tired of unreliable energy sources and high electricity bills? Say hello to a sustainable and cost-effective solution – our Containerized Storage system powered by LiFePO4 Battery and solar energy. Discover how you can take control of your energy needs while reducing your carbon footprint.

Sustainable Energy Solution:



Harness the power of solar energy with our Containerized Storage system. Say goodbye to dependency on fossil fuels and embrace a renewable energy solution that benefits both your wallet and the environment.

Reliable Power Storage:

Utilizing advanced LiFePO4 Battery technology, our system ensures reliable and long-lasting power storage. Rest assured knowing you have a dependable backup power source for when you need it most.

Flexible and Scalable:

With a modular design, our Containerized Storage system offers flexibility and scalability to meet your evolving energy needs. Whether you’re a homeowner or a business owner, our solution adapts to suit your requirements.

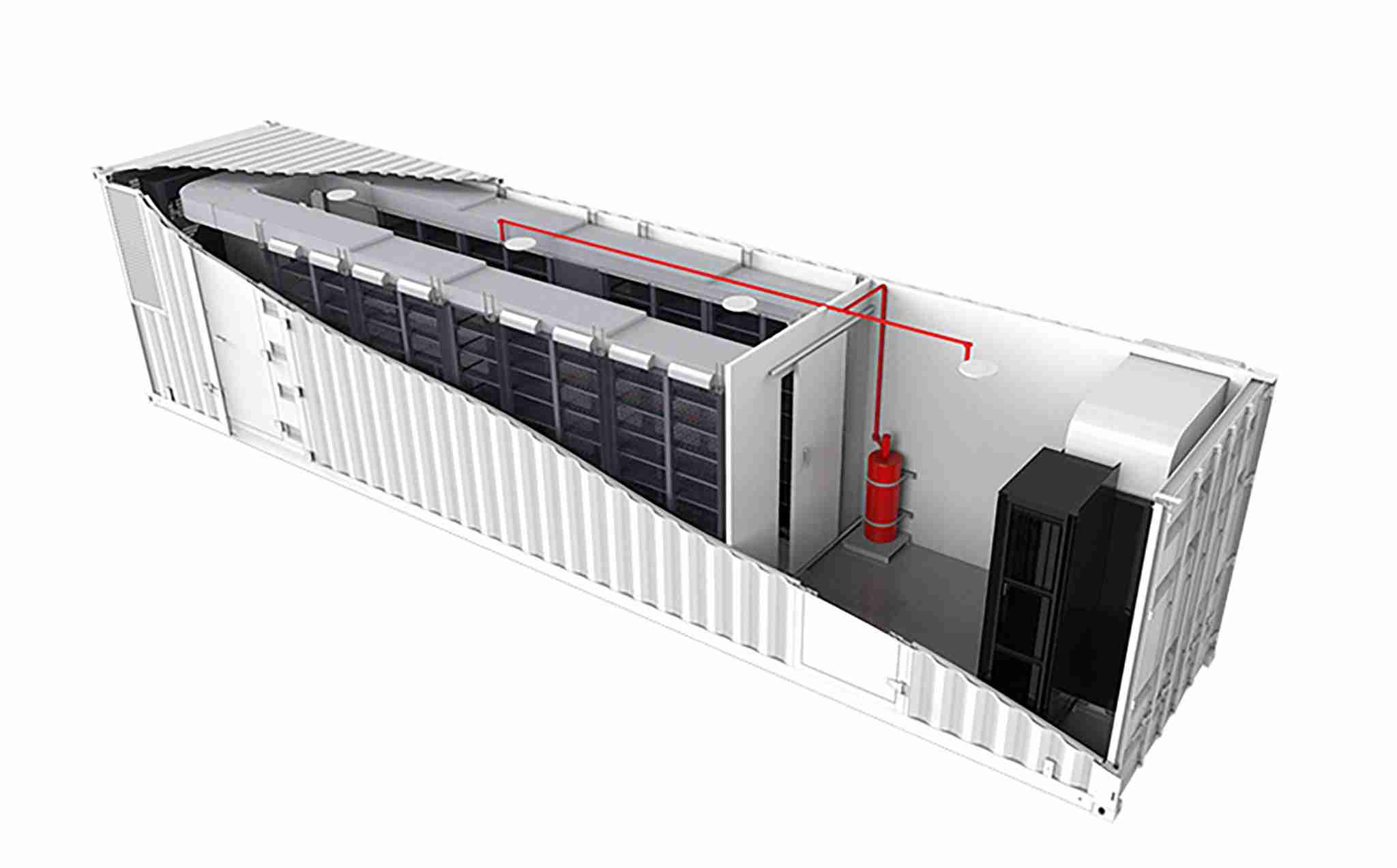

A container energy storage system (FC Power) is an integrated energy storage system developed for the needs of the mobile energy storage market. It integrates a battery cabinet, battery management system (BMS), and container dynamic ring monitoring system, and can integrate an energy storage converter and energy management system according to customer needs. Container energy storage system has the characteristics of simplifying infrastructure construction costs, short construction cycle, high degree of modularization, convenient transportation, and installation, and can be applied to thermal power, wind energy, solar power, and other power stations or islands, communities, schools, scientific research institutions, factories, large load centers, and other applications.

1MW/2.5MWH Energy Storage System
Rated output power		1000KW
Rated capacity		2500KWH
AC Phases		Three-phase Four-wire
Grid discharge mode	Rated voltage	380V
	Voltage range	380±15%V
	Rated frequency	50Hz
	Frequency range	47.5～51.5Hz
	Total current waveform	<5%
	distortion rate(THD)
	Output power factor	≥0.99
Isolated network operation mode	Rated voltage	380V
	Voltage accuracy	<±3%
	Output voltage distortion	<5%
	Rated output frequency	50±2％Hz
	Voltage transition range	<10％
	Can withstand three – phase load imbalance	100%
Grid-connected charging operation mode	Rated voltage	400V
	Voltage range is allowed	380±15%V
	Frequency range	47.5~51.5HZ
	Power factor	≥0.99（absolute value）
Noise		＜70dB
IP GRADE		IP54
External communication		Ethernet
Dimension		12192mm(L)*2438mm( W)*2591mm(H)
Weight		22 Ton

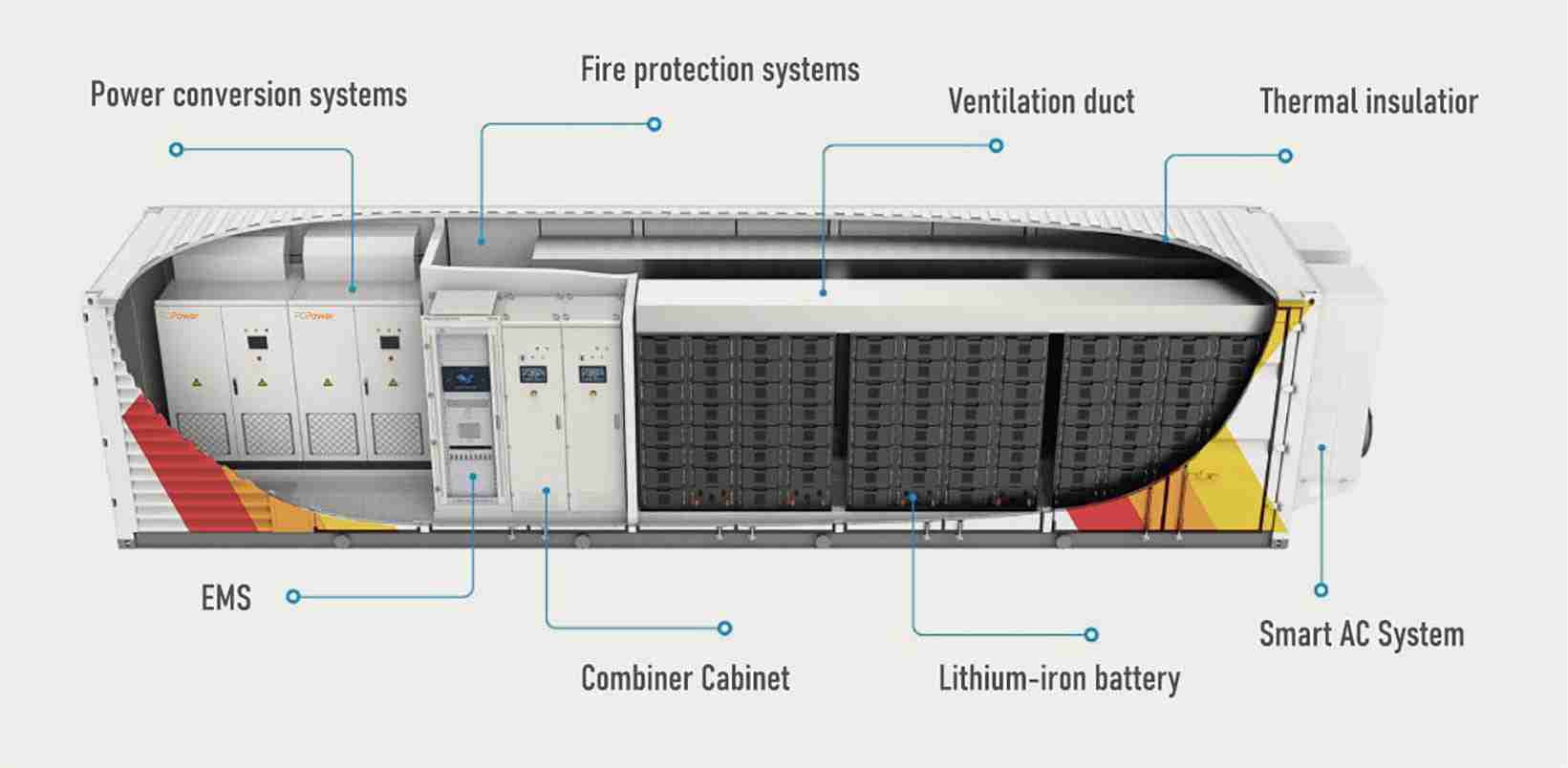

INCLUDING SYSTEMS:

1.Communication Systems
2.Monitoring Systems
3.Power conversion Systems
4.Fire protection Systems



Key features of the solution include:

Modular Design: The plug-and-play commissioning and maintenance capabilities of each battery cabinet indicate a user-friendly and convenient installation process. This modular approach could help streamline setup and reduce downtime during maintenance.

Environmental Control: The environmentally controlled liquid-cooled cabinet helps maintain optimal operating conditions for the battery cells. This is crucial for extending the lifespan and ensuring consistent performance of the energy storage system.

IP56 Construction: The IP56 construction of the outdoor cabinet indicates a high level of protection against dust and water ingress. This robust design is essential for ensuring the durability and longevity of the system, especially in outdoor or challenging environments.

Fire Suppression: The inclusion of fire suppression within the cabinet demonstrates a safety-conscious approach to the design, which is critical for large-scale energy storage systems to prevent potential hazards.

Scalability: The ability to install multiple cabinets together, creating energy storage blocks with capacities of up to 4472kWh, showcases scalability. This flexibility allows for customization based on the specific energy storage requirements of different projects.

Wide Range of System Sizes: The solution’s compatibility with energy storage systems ranging from 1MWh to 100MWh+ indicates versatility, enabling it to address a variety of applications and project scales.

Advantages of the system:

Reduce electricity cost: Multi-scene application, support peak, and valley arbitrage, auxiliary services, etc. Reduce electricity cost.

Improve system efficiency: intelligent algorithms improve system efficiency, Stable battery cell temperature, sensor technology, and big data support.

Smart and friendly: Grid-friendly, proactive support, quick response; Algorithm intelligence, efficient operation, prolonged service life; Access-friendly, diverse, and flexible.

High reliability: Comprehensive cloud monitoring, fast fault diagnosis; Intelligent management, AI support, improved thermal management capabilities; Fault isolation, multi-level protection, coordination of components and systems.

Flexible and convenient: Modular design, easy to install and maintain; Good compatibility, capacity can be expanded on demand; Support multiple sets of parallel use with a wide range of capacity.
