10kW 48V 200Ah LiFePO4 Battery – Reliable Residential Battery Storage for Solar-Powered Homes
Power Your Home with Confidence: Scalable, Safe, and Sustainable Residential Solar Storage
Looking to take control of your energy future? The 10kW 48V 200Ah LiFePO4 battery is a powerful, long-lasting solution for homeowners seeking reliable residential battery storage. Whether you’re building a new solar setup or enhancing your existing system with battery backup for home solar, this energy storage unit delivers unmatched efficiency, safety, and peace of mind.
| Item | Specification | |
| Electrical Characteristics | Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah (C5,25℃) | |
| Energy | 10.24KWh | |
| Internal Resistance | ≤500mΩ | |
| Cycle Life | >6000 cycles | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100%@0.2C | |
| Efficiency of Discharge | 96~99% @1C | |
| Standard Charge | Charge Voltage | 58.4±0.2V |
| Charge Mode | 0.2C to 58.4V, then 58.4,charge current 0.02C(CC/CV) | |
| Charger Current | 50A | |
| Max.Charge Current | 75A | |
| Charge Cut-off Voltage | 59.2V±0.2V | |
| Standard Discharge | Continuous Current | 100A |
| Max. Pulse Current | 200A | |
| Discharge Cut-off Voltage | 40V | |
| Environmental | Charge Temperature | 0℃ to 45℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60± 25% Relative Humidity | |
| Storage Temperature | 0℃ to 40℃ (32F to 104F) @60± 25% Relative Humidity | |
| Water Dust Resistance | ||
| Mechanical | Cell & Method | 3.2V25AH-16S8P |
| Plastic Case | standard case | |
| Dimensions (in/mm.) | 860*540*140MM | |
| Weight (lbs/kg.) | 70Kg | |
| Terminal | Energy storage connector | |
| Protocol (optional) | RS485/CAN | |
| BMS | 16S200A | |
With advanced LiFePO4 technology at its core, this battery is designed to work seamlessly with hybrid and off-grid systems—making it a smart choice for anyone who wants to lower electric bills, gain energy independence, and stay powered through outages.
Product Snapshot – Key Specifications
| Feature | Details |
| Nominal Capacity | 48V 200Ah |
| Energy Output | 10kW continuous power |
| Usable Energy | ~9.6kWh (expandable with additional units) |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Cycle Life | 6,000–10,000 cycles @ 80% DoD |
| Efficiency | ≥95% round-trip |
| Applications | Home, cabin, off-grid, hybrid solar |
| BMS | Integrated with CAN/RS485 communication |
| Mounting | Rack Mount |
| Safety Features | Overvoltage, undervoltage, temp control, balancing |
| Warranty | 5–10 years |
Key Features of the 10kW 48V 200Ah LiFePO4 Battery
- 10kW Energy Capacity: Provides ample storage to power essential household appliances, ensuring uninterrupted energy availability.
- 48V 200Ah Configuration: Offers a safe and efficient power solution for residential solar systems.
- LiFePO4 Technology: Utilizes lithium iron phosphate for superior safety, thermal stability, and extended cycle life.
- Residential Battery Storage: Stores excess solar energy for use during nighttime or cloudy days, maximizing solar panel efficiency.
- Residential Solar Storage: Seamlessly integrates with home solar setups to deliver clean, renewable energy.
- Battery Backup for Home Solar: Ensures critical systems remain operational during power outages, providing energy security.
- Compact and Durable Design: Built for easy installation and long-lasting performance in residential environments.
- Advanced Safety Features: Includes overcharge protection, thermal management, and short-circuit prevention for secure operation.
Perfect for Residential Battery Storage
This 48V 200Ah battery is ideal for residential homes looking for backup and daily energy cycling. Whether you’re offsetting utility bills or running critical loads during blackouts, this solution is a reliable foundation for residential solar storage.
Power What Matters Most:
- Lighting and outlets
- Refrigerators and freezers
- Wi-Fi routers and communication systems
- Entertainment systems
- Home office electronics
- Water pumps and small AC units
With 10kW of continuous output, this battery can handle most home loads comfortably—even during peak usage.
Residential Solar Storage Made Simple

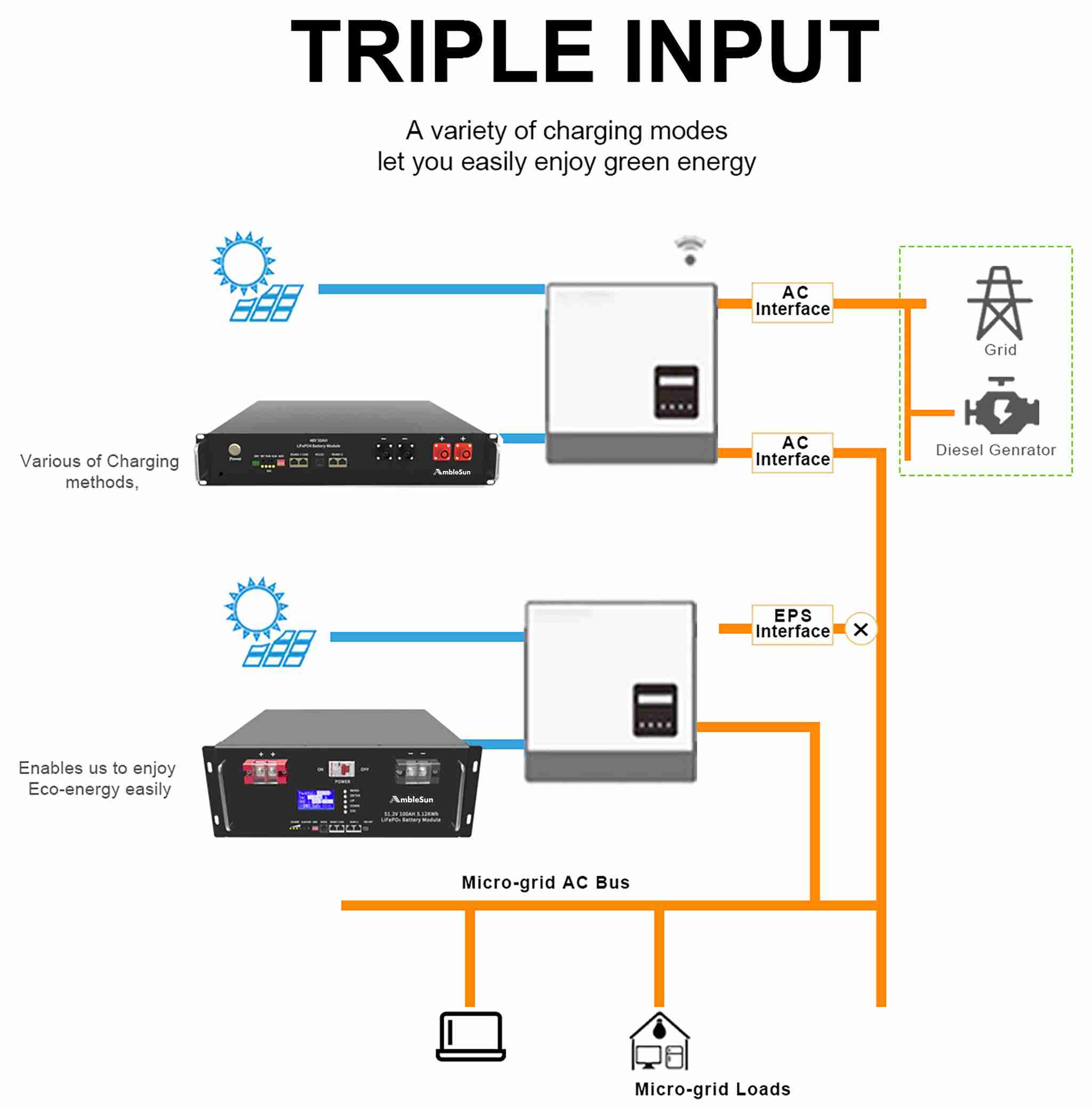

Pairing this battery with solar panels transforms your home into an independent energy system. It stores excess solar power generated during the day and makes it available when the sun goes down or during grid outages.
Benefits of Solar + Storage:
- Use solar energy 24/7
- Reduce reliance on the grid
- Maximize return on solar investment
- Avoid peak electricity rates
- Keep essential appliances running during outages
This battery brings your residential solar storage full circle—making your energy clean, constant, and cost-effective.
Why LiFePO₄ Matters
At the core of this system is LiFePO4 (Lithium Iron Phosphate), the most trusted lithium battery chemistry for residential use. Known for stability, safety, and long life, LiFePO4 batteries outperform other types in nearly every category.
Advantages of LiFePO4:
- Excellent thermal and chemical stability
- No risk of fire or thermal runaway
- Safe for indoor installations
- Low maintenance and self-balancing
- Non-toxic and recyclable materials
- Lifespan of 10–15 years
Unlike traditional lead-acid batteries, LiFePO₄ provides a worry-free experience with more usable energy and less degradation over time.
Benefits of Residential Solar Storage with LiFePO4
Our 10kW 48V 200Ah LiFePO4 battery unlocks the full potential of residential solar storage, offering significant benefits for homeowners. Its ample capacity ensures reliable power for essential household systems, while the 48V 200Ah configuration provides safe and efficient energy delivery. The LiFePO4 technology enhances safety with its thermal stability, reducing the risk of overheating or combustion, making it an ideal battery backup for home solar.
The battery’s compact and modular design simplifies installation in spaces like garages, basements, or utility rooms, making it a practical choice for homes with limited space. Its scalability allows you to expand your storage capacity as your energy needs grow, ensuring long-term value. By leveraging this residential battery storage solution, you can significantly reduce electricity costs, protect against rising utility rates, and contribute to a cleaner environment. With robust safety features and exceptional performance, this 10kW battery is built to deliver reliable power for years.
Reliable Battery Backup for Home Solar
Power outages are unpredictable, but your energy shouldn’t be. This system provides automatic battery backup for home solar, keeping your essential circuits online when the grid goes down.
Backup Applications:
- Automatic switchover during outages
- Maintain internet, communication, and lighting
- Protect food storage and appliances
- Eliminate downtime for home offices
- Works with smart energy systems for prioritized load management
Whether it’s a rolling blackout or a major storm, you’ll stay powered and protected.
Smart Monitoring & System Integration
With built-in communication ports (CAN, RS485), this system integrates easily with leading hybrid inverters and energy management systems. Use your smartphone or computer to view real-time data, including charge/discharge rates, energy usage, and battery health.
Features Include:
- Remote monitoring via web or app
- Real-time diagnostics and status updates
- Smart inverter compatibility (Growatt, Victron, Deye, etc.)
- Modular scalability
- System alerts for voltage, temperature, and current
This is a battery that thinks as smart as it stores.
Simple Installation & Scalable Design
This 48V 200Ah LiFePO4 battery is designed for flexibility. It fits easily into garages, utility rooms, solar enclosures, or dedicated battery cabinets.
Installation Options:
- Wall-mounted or freestanding

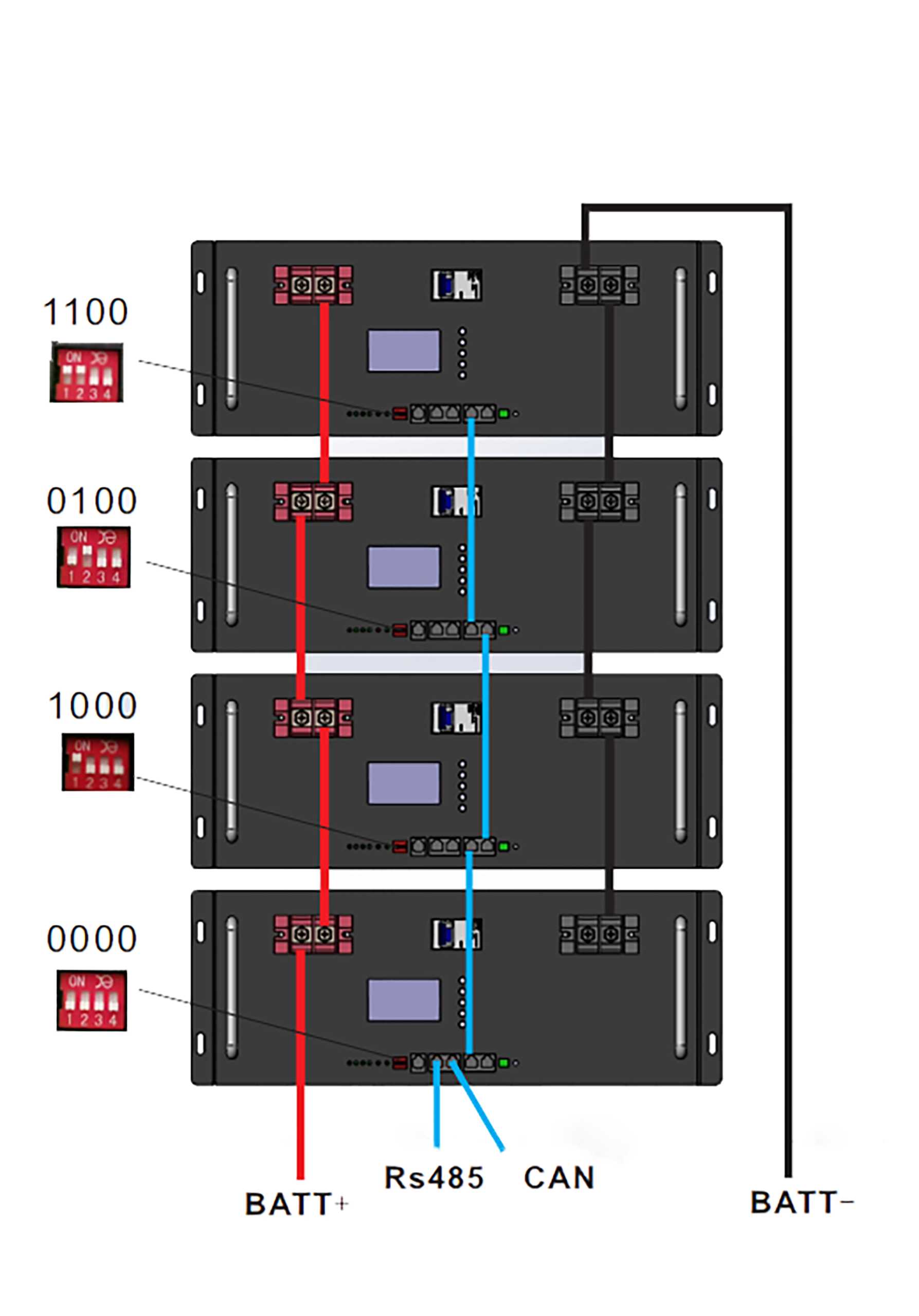

- Expandable: parallel connections for up to 100kWh
- Compatible with existing solar systems
- Minimal wiring required for DIY or pro installs
- Optional IP65 enclosure for outdoor use
Whether you’re upgrading or building from scratch, this system makes integration easy.
Clean Energy That Lasts
If you’re serious about sustainability, this system delivers. Built with recyclable, non-toxic materials and zero-emission performance, it’s a clean, quiet solution that contributes to a greener home—and planet.
What’s Included
- 1x 48V 200Ah LiFePO₄ Battery Module
- Built-in BMS
- Pre-wired terminals and safety labels
- RS485/CAN communication ports
- User manual and quick-start guide
- Optional: Wi-Fi/Bluetooth remote monitoring module
- Optional: Weatherproof enclosure
FAQs
Q: Can this battery run my whole house?
Yes, for most homes with managed loads. You can also expand the system for whole-home coverage.
Q: Is it compatible with my solar inverter?
It works with most 48V hybrid and off-grid inverters including Victron, Growatt, Deye, and Solis.
Q: How long does it last?
With proper use, expect 10–15 years and up to 10,000 charge cycles.
Q: Can I add more batteries later?
Yes! This system is modular and supports multiple units connected in parallel.
Q: Is it safe to install indoors?
Absolutely. The LiFePO₄ chemistry is stable and emits no fumes or hazardous gases.
The 10kW 48V 200Ah LiFePO4 battery is the ideal solution for homeowners seeking dependable residential battery storage. With advanced safety, high energy density, and seamless integration with solar, it’s the smart choice for anyone serious about clean energy, backup power, and long-term energy savings.
Store Smart. Stay Powered. Live Off the Grid—Or On Your Own Terms.
Power your home with the 10kW 48V 200Ah LiFePO₄ Battery—your trusted source for reliable, scalable residential solar storage.
