Description

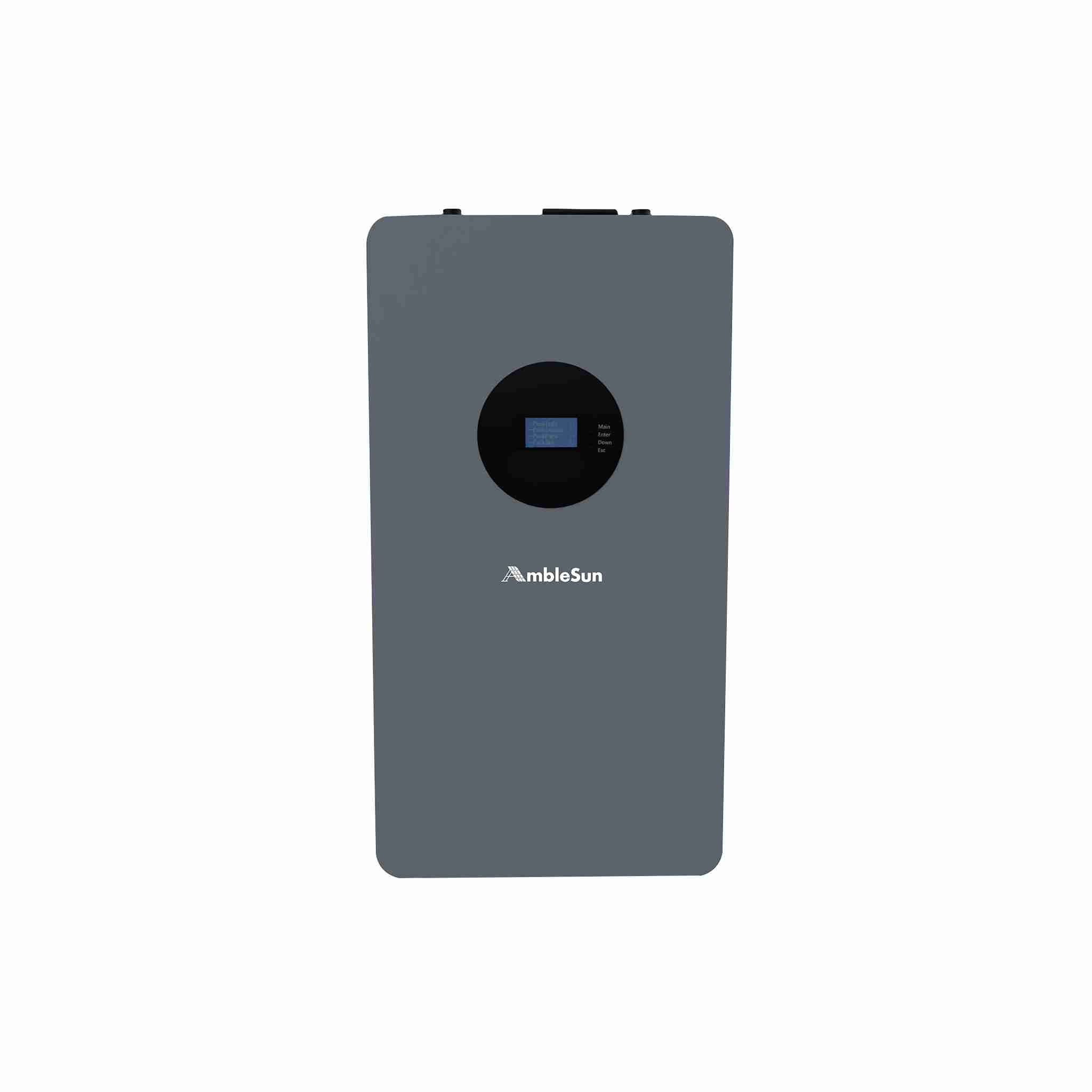

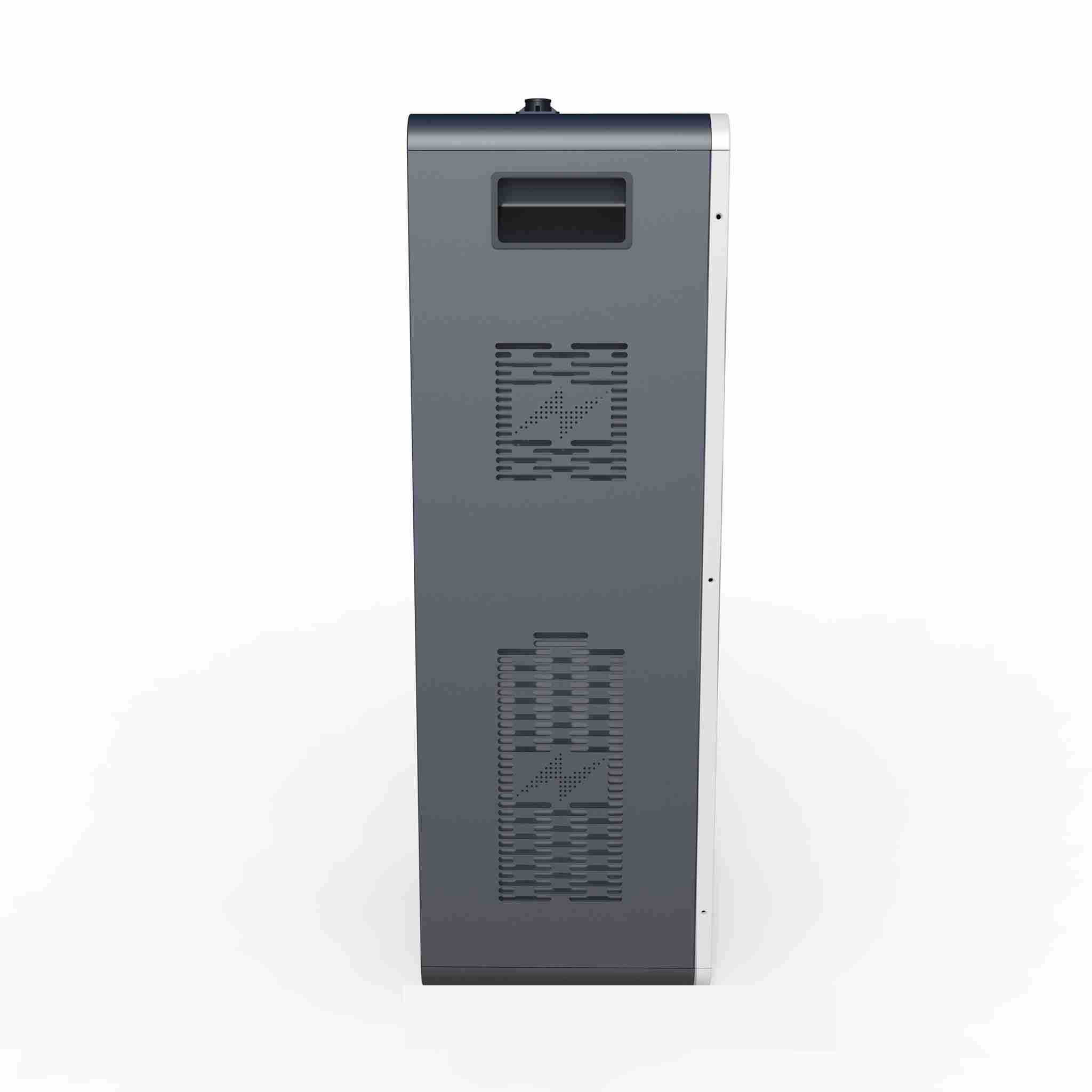

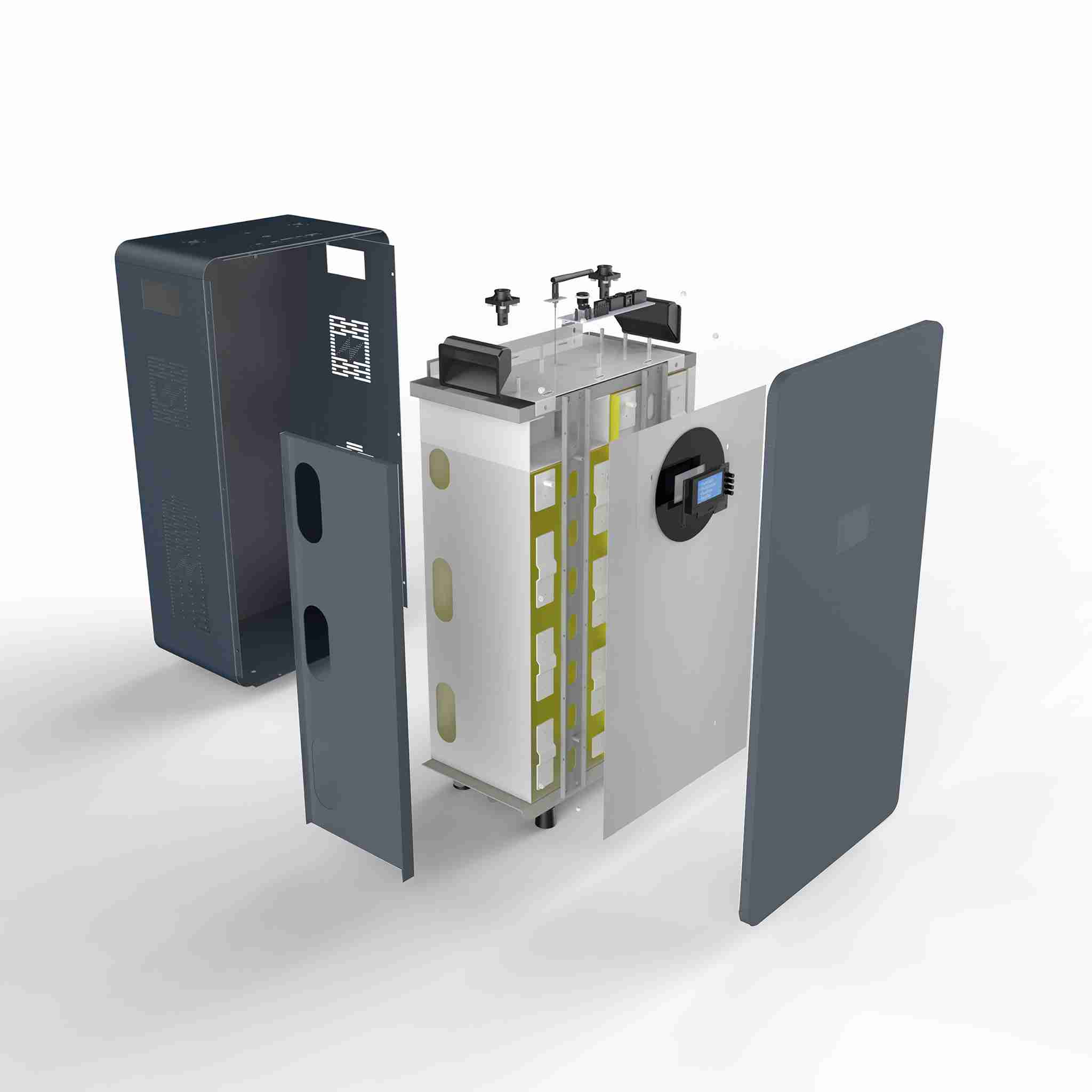

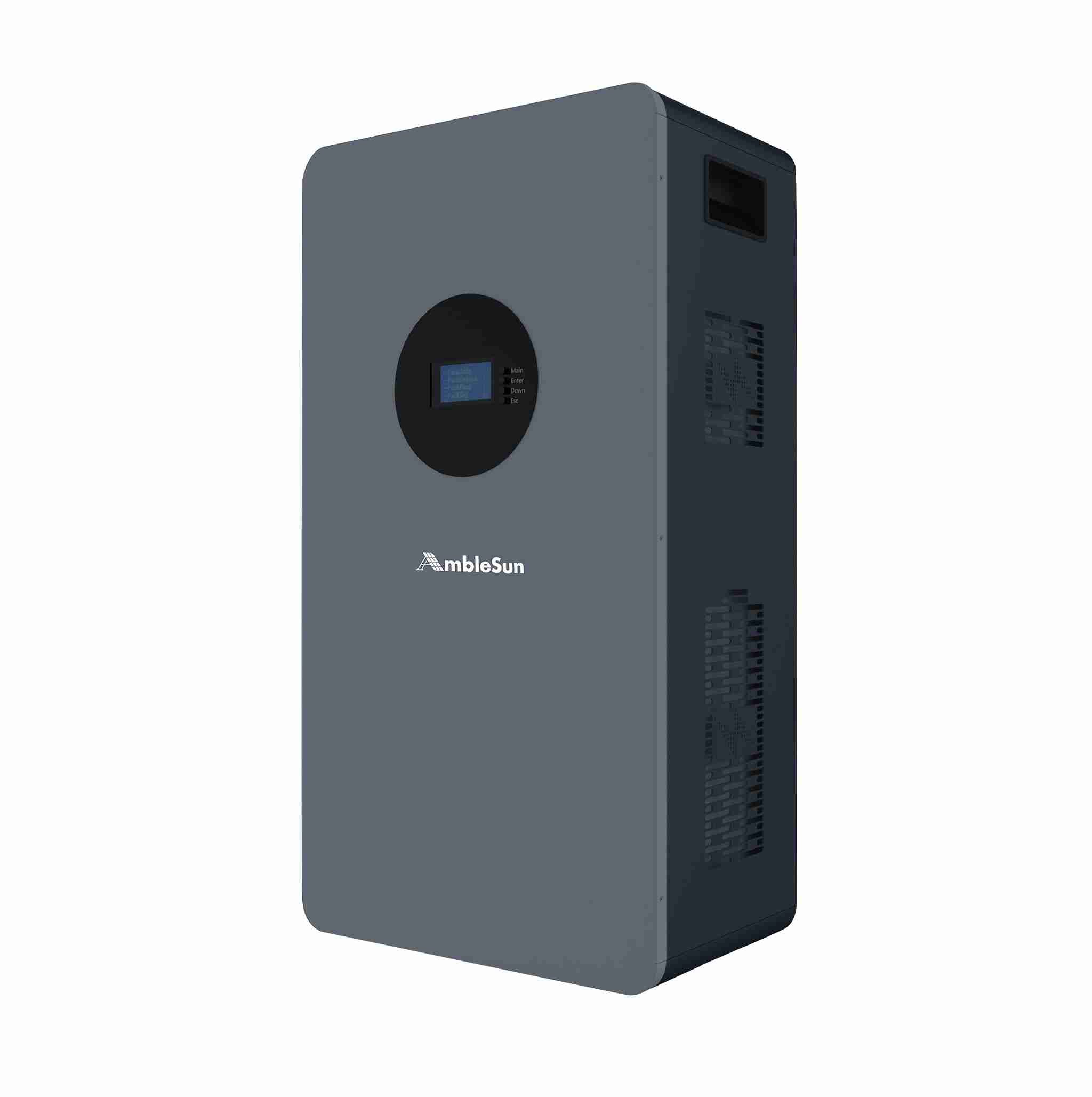

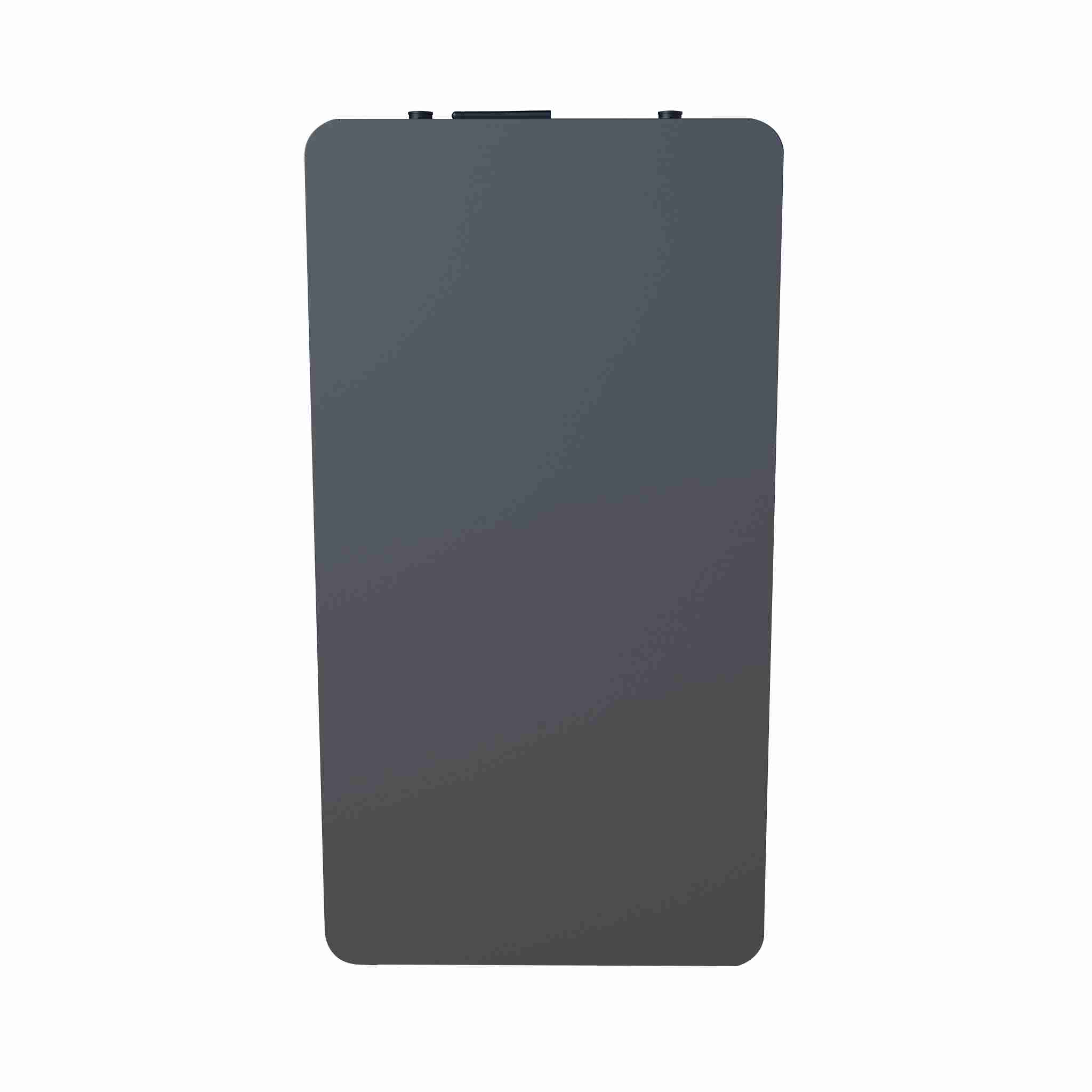

48V 100AH WALL MOUNTED LIFEPO4 BATTERY
Experience the freedom of off-grid living with our 48V 100Ah wall-mounted LiFePO4 Battery. With a compact design and powerful 5kWh storage capacity, this battery is perfect for powering your solar-powered off-grid setup. Say goodbye to grid dependency and hello to sustainable living with our off-grid battery solution
| Item | Specification | |
| Electrical Characteristics |
Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah (C5,25℃) | |
| Energy | 5.12KWh | |
| Internal Resistance | ≤50m | |
| Cycle Life | >6000 cycles | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100%@0.2C | |
| Efficiency of Discharge | 96~99% @1C | |
| Standard Charge | Charge Voltage | 58.4±0.2V |
| Charge Mode | 0.2C to 58.4V, then 58.4,charge current 0.02C(CC/CV) | |
| Charger Current | 25A | |
| Max. Charge Current | 50A | |
| Charge Cut-off Voltage | 59.2V±0.2V | |
| Standard Discharge | Continuous Current | 100A |
| Max. Pulse Current | 150A(<3s) | |
| Discharge Cut-off Voltage | 40V | |
| Environmental | Charge Temperature | 0℃ to 45℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4F to 140F) @60± 25% Relative Humidity | |
| Storage Temperature | 0℃ to 40℃ (32F to 104F) @60± 25% Relative Humidity | |
| Water Dust Resistance | ||
| Mechanical | Cell & Method | 3.2V25AH-16S4P |
| Plastic Case | standard case | |
| Dimensions (in./mm.) | 570*360*140MM | |
| Weight (lbs./kg.) | 47Kg | |
| Terminal | Energy storage connector | |
| Protocol (optional) | RS485/CAN | |
| BMS | 16S100A | |
- Advanced LiFePO4 Battery Technology: Benefit from the superior performance and safety of lithium iron phosphate technology. Our battery offers high energy density, long cycle life, and exceptional thermal stability, ensuring reliable power storage for your off-grid lifestyle.
- Compact Yet Powerful: Despite its compact size, this wall-mounted battery boasts a substantial 5kWh storage capacity, providing ample energy to keep your off-grid setup running smoothly. It’s the perfect solution for small cabins, RVs, or other off-grid applications where space is limited.
- Seamless Solar Integration: Harness the power of the sun by integrating this battery with your solar installation. Capture solar energy during the day and store it in the LiFePO4 battery for use when the sun goes down or during cloudy weather, ensuring continuous power supply without relying on the grid.
- Off-Grid Reliability: Say goodbye to power outages and grid dependency with our off-grid battery solution. Whether you’re camping in the wilderness or living off the land, our wall-mounted LiFePO4 battery provides reliable energy storage, allowing you to enjoy off-grid living with confidence.
- Easy Installation and Maintenance: Designed for hassle-free installation and minimal maintenance, our wall-mounted battery system is user-friendly and convenient. Simply mount it in your preferred location, connect it to your solar panels, and enjoy uninterrupted power whenever you need it.
48V 100Ah LifePO4 Battery: Boost Your Solar Power and Expand Your Options
Unleash the full potential of your solar energy system with the 48V 100Ah Wall Mounted LifePO4 Battery! This versatile lithium battery empowers you to maximize solar efficiency and explore off-grid possibilities:
- Enhanced Solar Performance: Store excess solar power during the day and utilize it at night, reducing reliance on the grid and potentially lowering your electricity bills.
- Off-Grid Ready: The 5kWh capacity (usable energy may vary) provides a solid foundation for off-grid living, powering essential appliances with clean, sustainable energy.
- Safe and Long-Lasting: LifePO4 (Lithium Iron Phosphate) technology boasts a lifespan of 10-15 years, significantly outperforming traditional lead-acid batteries, with inherent safety features for peace of mind.
- Space-Saving Design: The wall-mounted design maximizes floor space, making it ideal for various installations.
48V 100Ah LifePO4 Battery: Reliable Backup Power for Your Solar System
Maximize your solar energy potential and ensure peace of mind with the 48V 100Ah LifePO4 Battery! This advanced lithium battery seamlessly integrates with your existing solar system:
- Increased Solar Efficiency: Store excess solar power during the day and utilize it at night, maximizing the benefits of your solar panels and reducing dependence on the grid.
- Reliable Backup Power: The 5kWh capacity (usable energy may vary) provides backup power during outages, ensuring essential appliances continue to function.
- Simple Integration: The 48V design seamlessly integrates with most solar inverters for a hassle-free installation.
- Long-Lasting Performance: Enjoy a lifespan of 10-15 years, significantly outperforming traditional lead-acid batteries, with minimal maintenance required.
48V 100Ah LifePO4 Battery: Take the First Step to Off-Grid Freedom
Start your journey towards energy independence with the 48V 100Ah LifePO4 Battery! This powerful lithium battery is the perfect first step for exploring off-grid living:
- Sustainable Off-Grid Starter: Store solar energy and use it to power essential appliances, transitioning towards a self-sufficient lifestyle.
- 5kWh of Usable Energy (may vary): Provides a solid foundation for off-grid power needs, potentially eliminating some reliance on the grid.
- Safe and Reliable: LifePO4 technology offers a lifespan of 10-15 years and inherent safety features for reliable and long-lasting performance.
- Easy Installation: The wall-mounted design simplifies installation in your off-grid home or cabin.
Key Features of 48V 100Ah Wall Mounted LiFePO4 Battery
High Energy Density: The 48V 100Ah LiFePO4 Battery is known for its high energy density, providing ample storage capacity within a compact form factor. This makes it ideal for installations where space is limited.
Long Cycle Life: LiFePO4 (Lithium Iron Phosphate) batteries are renowned for their long cycle life, often exceeding 3000-5000 charge cycles. This ensures that the 48V 100Ah LiFePO4 Battery offers reliable performance for many years.
Safety and Stability: LiFePO4 chemistry is one of the safest lithium battery technologies available. It is inherently stable, with a lower risk of thermal runaway and fire, making it a safe choice for residential and commercial installations.
Efficient Energy Storage: With a nominal voltage of 48V and a capacity of 100Ah, this battery can store up to 4.8kWh of energy, making it suitable for various applications, including backup power, off-grid systems, and renewable energy storage.
Wall-Mounted Design: The wall-mounted configuration of the 48V 100Ah LiFePO4 Battery allows for easy installation and space-saving deployment. This design is particularly advantageous for urban environments and small spaces.
Amble Sun: Pioneering Advanced Energy Solutions
Amble Sun, also known as Amble Sun,, is a leading provider of innovative energy storage solutions. The 48V 100Ah Wall Mounted LiFePO4 Battery is one of their premier products, reflecting the company’s commitment to quality, safety, and performance.
Amble Sun, Battery Advantages:
- Reliability: Amble Sun,batteries, including the 48V 100Ah LiFePO4 Battery, are engineered for reliability and durability, ensuring consistent performance over time.
- Quality Assurance: Each Amble Sun battery undergoes stringent quality control processes to meet the highest industry standards.
- Customer Support: Amble Sun provides comprehensive customer support, assisting with installation, maintenance, and troubleshooting to ensure seamless operation.
Applications of 48V 100Ah Wall Mounted LiFePO4 Battery
The 48V 100Ah Wall Mounted LiFePO4 Battery is versatile and can be utilized in a variety of applications:
- Residential Energy Storage: Ideal for homeowners looking to store excess solar energy, this battery can provide backup power during outages and reduce reliance on the grid.
- Commercial Energy Solutions: Businesses can use the 48V 100Ah LiFePO4 Battery for peak shaving, load shifting, and ensuring continuity of operations during power interruptions.
- Off-Grid Systems: For remote locations without access to the grid, this battery offers a reliable energy storage solution, supporting off-grid living and sustainable energy independence.
- Renewable Energy Integration: Paired with solar panels or wind turbines, the 48V 100Ah Wall Mounted LiFePO4 Battery can store renewable energy, ensuring a steady power supply even when the sun isn’t shining or the wind isn’t blowing.
